SewerVision cable reels impress with high-quality workmanship and an enormous range of application possibilities. The lightest cable reel only weighs 16 kg, the largest has a range of 500 m. Intelligent and well-proven details and functions, which have been tested in the field, facilitate the day-to-day work. Special solutions such as for example the SAT-cable reel for inspecting laterals will allow you to master every inspection task without any problem.
Vorige
Volgende

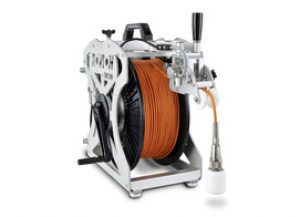

RMX200 MANUAL CABLE REEL UP TO 200 M
The ROVION pipeline inspection system is equipped with a manual cable reel with a 200 m solid camera cable. The cable reel holds max. 200 m of robust camera cable and offers winding support that the camera cable is wound up to the cable reel quickly and cleanly. Additionally, you can mount your control panel to the optional telescope bar during an inspection.
Max. 200 m robust camera cable
Adjustable brake
Hand crank
Dirt wiper
Winding support
Telescopic bar with control panel mount
Cable Reel RMX200
Downloads
RLX200 MANUAL CABLE REEL UP TO 200 M
The ROVION pipeline inspection system is equipped with a manual cable reel with a 200 m robust camera cable. The cable reel holds max. 200 m of solid camera cable and offers winding support that the camera cable is wound up to the cable reel quickly and cleanly.
Max. 200 m solid camera cable
Adjustable brake
Hand crank
Winding support
Cable Reel RLX200
Downloads
RMB150 MANUAL CABLE REEL UP TO 150 M
Portable manual cable reel RMB150 for ROVION inspection system for the inspection of sections and pipes, which cannot be reached easily from inspection vehicle. The power supply and transmission of video signal is made via the camera cable of a RAX300 or RMX200 cable reel.
Max. 150 m amored camera cable
Meter counter
Adjustable break
Hand crank
Winding support
Connector for camera cable
Compatible with ROVION cable reel RAX300 and RMX200
RMB150
Downloads
RLX200/RMX200 EXTENSION CABLE REEL (SET) UP TO 2X200 M
Pipes which cannot be reached easily can be inspected from the inspection vehicle by using this set of reels. The set consists of a modified RLX200 cable reel and a modified RMX200 cable reel with up to 200 m camera cable each. The manual cable reel RLX200 serves as an extension reel for the manual cable reel RMX200. The control panel is connected to the RLX200 and the crawler to the RMX200.
Using a switch the RMX200 can be used either in extension reel mode or in stand-alone mode. Both manual reels are made for portable applications and ensure high stability.
RMX200:
- 200 m extremely robust camera cable
- Meter counter
- Adjustable brake
- Hand crank
- Winding support
- Telescopic bar with control panel mount
- Switch extension reel mode / stand-alone mode
- Connector for RLX200 (or for control panel in stand-alone mode)
RLX200:
- 200 m extremely robust camera cable
- Adjustable brake
- Hand crank
- Winding support
- Connector for control panel
- Stand-alone mode not possible (no meter counter / crawler connector available)
Set RLX200/RMX200
Downloads

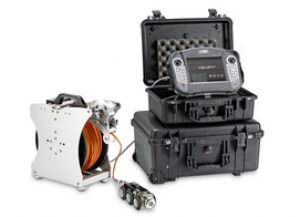

RMX100 MOBILE CABEL REEL UP TO 100 M & CONTROL CASE
The mobile inspection system RMX100 is particularly suitable for the inspection of manholes and pipeline systems where space is limited or access to the inspection site is difficult. Depending on the crawler and camera used its application range starts at DN 100; cable length is 100 m.
To achieve the required flexibility and mobility a complete inspection system can be integrated in just two cases. The so-called control case ERMX100 accommodates the built-in control electronics for the cable reel and a mount for the iPEK operating panel VISIONCONTROL VC200. The second case, the so-called drum case, contains the removable manual cable reel RMX100 with 100 m of high-tensile camera cable. Additionally the drum case provides space for the storage of a small crawler with camera and additional accessories.
For convenient transportation of the mobile inspection system RMX100 to the inspection site, the drum case is designed as plastic trolley with stable rollers and a telescopic rod. The control case ERMX100 can be placed above the drum case and attached to the trolley for transportation.
To achieve the required flexibility and mobility a complete inspection system can be integrated in just two cases. The so-called control case ERMX100 accommodates the built-in control electronics for the cable reel and a mount for the iPEK operating panel VISIONCONTROL VC200. The second case, the so-called drum case, contains the removable manual cable reel RMX100 with 100 m of high-tensile camera cable. Additionally the drum case provides space for the storage of a small crawler with camera and additional accessories.
For convenient transportation of the mobile inspection system RMX100 to the inspection site, the drum case is designed as plastic trolley with stable rollers and a telescopic rod. The control case ERMX100 can be placed above the drum case and attached to the trolley for transportation.
RMX100
